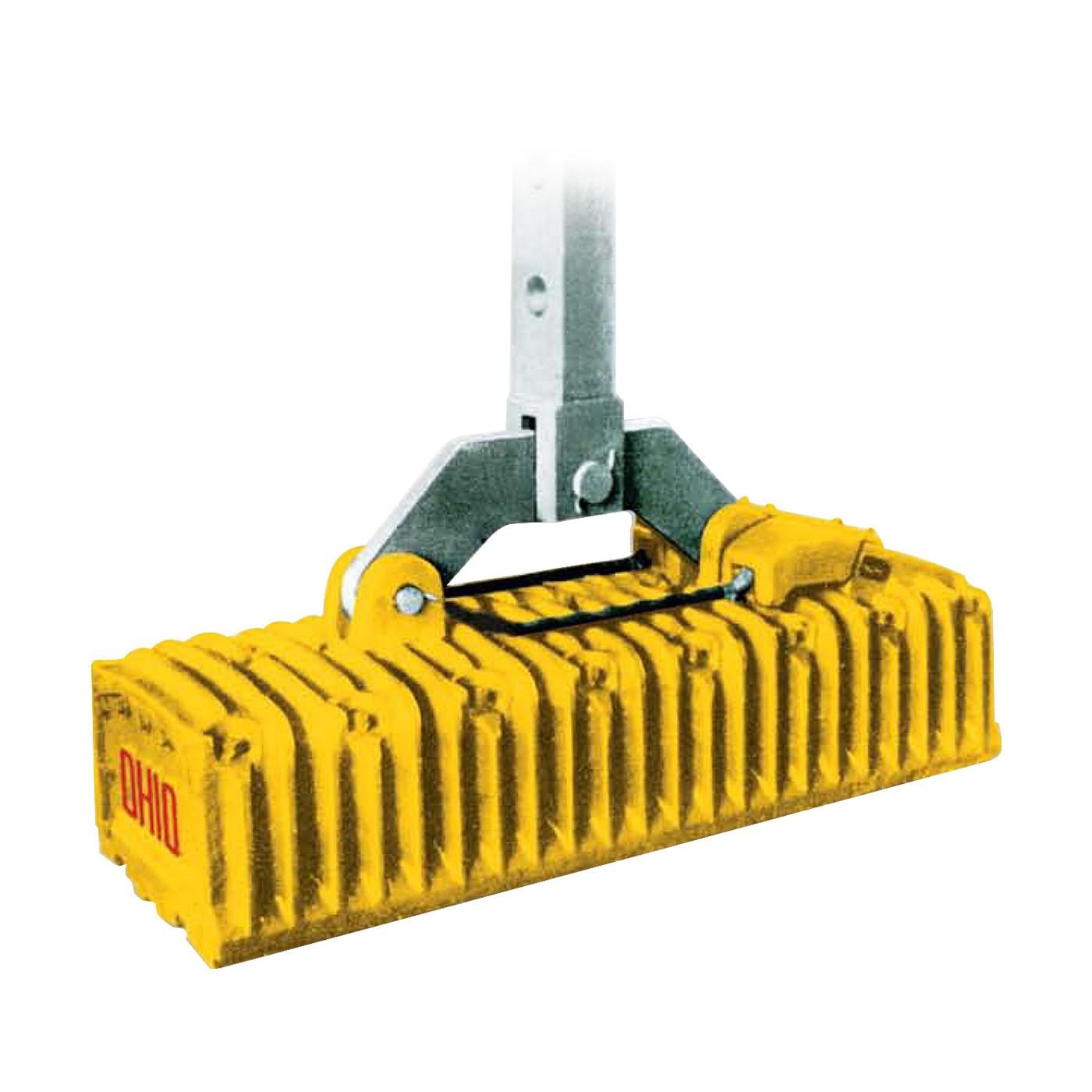

Ohio Heavy Duty Case Rectangular Magnets


Ohio Heavy Duty Case Rectangular Magnets


Ohio Ohio Cast-Case Rectangular Magnets are suited to the most extreme environmental conditions like those found in steel mills. These rugged, heavy duty magnets are designed specifically to stand up to the most demanding conditions.

Ideal For Use In:

  • Severe Mill Applications
  • Slab Turning
  • Slab & Ingot Handling (Hot Work construction available)
  • Billet & Boom Handling (Hot Work construction available)
  • Structural Product & Bundles (Hot Work construction available.)

Product Features:

  • Heavy Duty cast case construction
  • Available in variety of sizes
  • Lifting Capability Range – 7,000 to 47,000 lbs
  • Copper wound coils are standard design, available for hot-work applications
  • 230 VDC standard, special voltages available by request

SKU Details

Sku Images Part# Weight (lbs.) Amps Cold Controller Size Size/Model Wire Size Watts Cold Lifting Capacity (lbs.) Description
OM-HDCC-19x32 950 8 CDS 19 x 32 #14 1850 7000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-19x42 1550 12 CDS 19 x 42 #14 2700 12000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-19x52 1700 13 CDS 19 x 52 #14 3000 15000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-19x73 2850 15 CDS 19 x 73 #14 3500 28000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-20x66 3000 19 CDS 20 x 66 #12 4500 25000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-21x85 3850 25 RD-1W/MC-1A 21 x 85 #12 5800 32000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-21x108 4500 35 RD-1W/MC-1A 21 x 108 #10 8050 40000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-26x42 3000 21 RD-1W/MC-1A 26 x 42 #12 4900 18000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-26x54 4500 30 RD-1W/MC-1A 26 x 54 #10 6900 25000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-26x62 4800 30 RD-1W/MC-1A 26 x 62 #10 6900 30000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-26x68 5900 37 RD-1W/MC-1A 26 x 68 #10 8500 35000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-28x74 6850 40 RD-1W/MC-1A 28 x 74 #10 9700 47000 Heavy Duty Cast Case Rectangular Magnet
OM-HDCC-30x48 4500 23 RD-1W/MC-1A 30 x 48 #10 5400 22000 Heavy Duty Cast Case Rectangular Magnet
