integrated MAGnet systems

SIEB's iMAGs are compact, maintenance free and easy to operate.

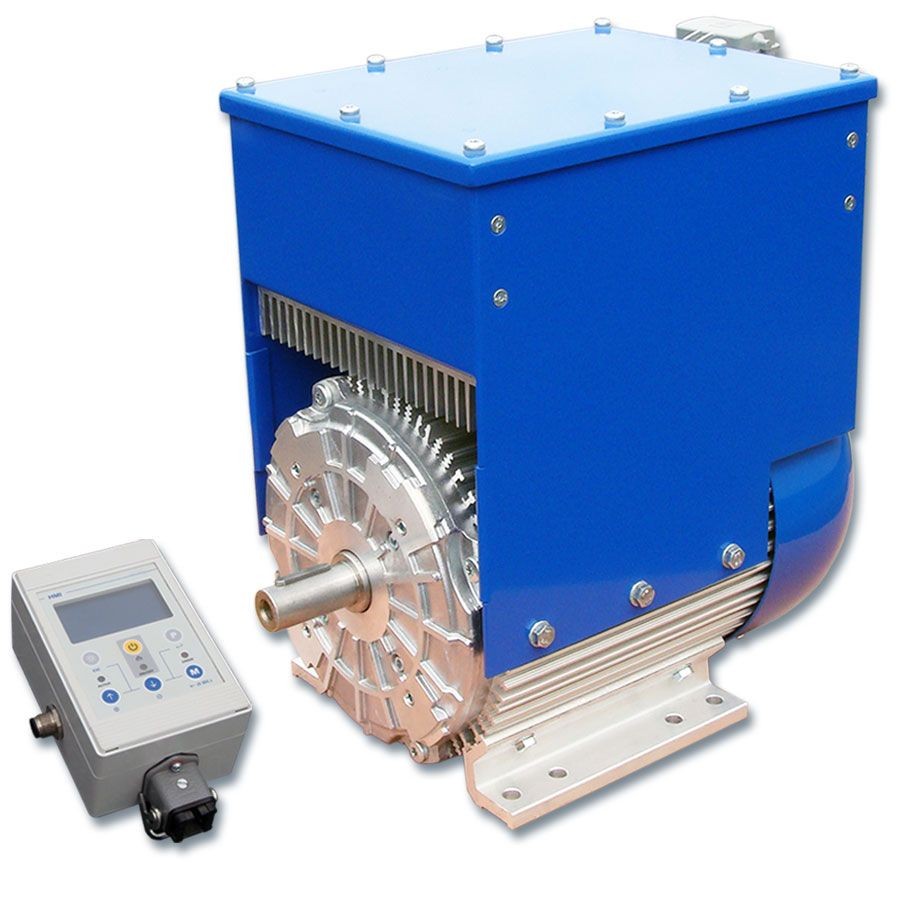

With iMAGs you get a completely integrated Plug-and-Play (PnP) system. The controller and generator are combined into one unit. The 9 kW units measure only 17" long by 17” high with a width of only 11”! The controller can be mounted remotely if necessary.

iMAGs are operated remotely by a highly informative HMI (Human Machine Interface) control unit. The HMI can also connect to your preferred method of switching your magnet on and off, whether it be a joystick, foot switch, lever switch or push button. Wireless control is also available. iMAGs can be driven by diesel or gas motors, v-belts, PTO or hydraulically. Please click on "iMAGs Brochure" under "Product Documents" below for more details.

Product Features:

  • Load limit control
  • Torque control
  • Integrated system tester
  • Integrated insulation monitoring
  • Adjustable magnetic power

Product Documents

iMAGs Brochure

SKU Details

Sku Images Part# Nominal Power 100% duty cycle - S1 Nominal Voltage Nominal Current Speed Size (IEC) Weight (kg)
iMAGs 9 kW 9 kW 230 VDC 39A 1800 - 4500 rpm 132 71 kg
iMAGs 15 kW 15 kW 230 VDC 65A 1800 - 4500 rpm 132 93 kg
iMAGs 25 kW 25 kW 230 VDC 108A 1800 - 4500 rpm 160 194 kg
iMAGs 35 kW 35 kW 230 VDC 152A 1800 - 4500 rpm 160 200 kg
